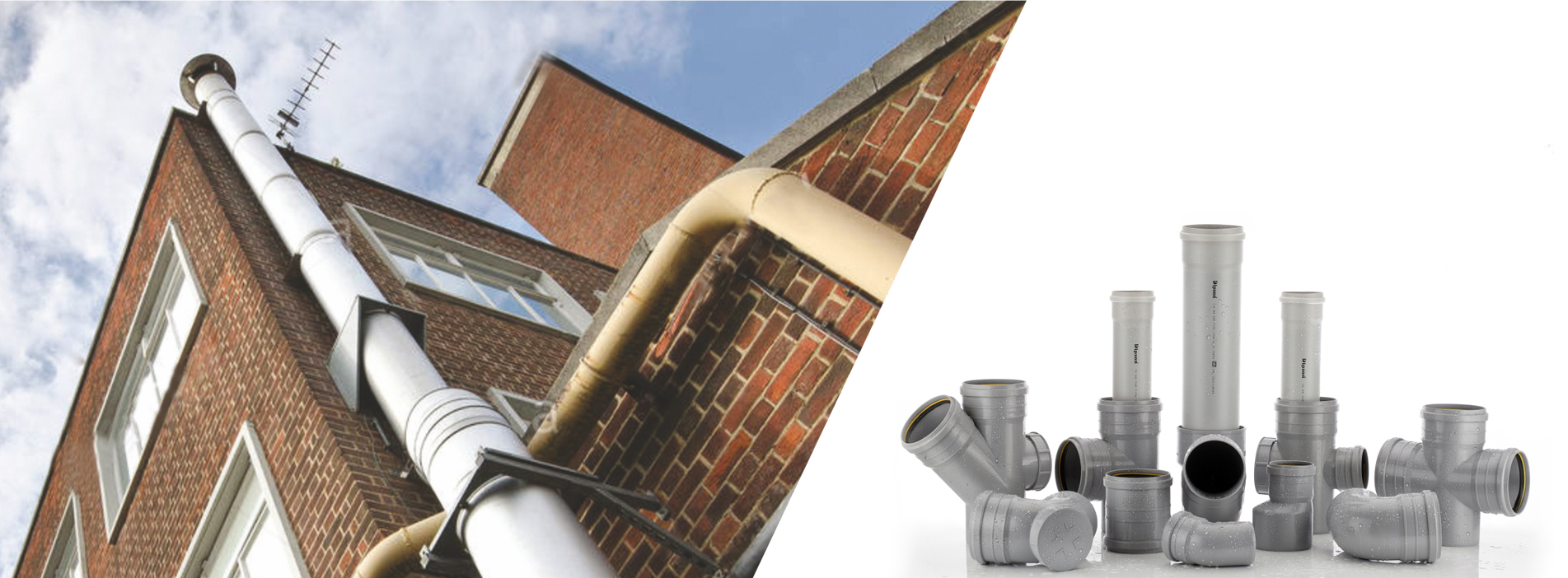

SWR Fittings Banner

S.W.R. Soil Waste and Rain Pipes & Fittings

application

Soil Waste and Rain Water Application. SWR Pipes & Fittings are used for drainage and sewerage application,at Venting off Gases and odorus in Domestic Plumbing, Homes, Office, Hotels, Industries as Well as Public such as Airports.

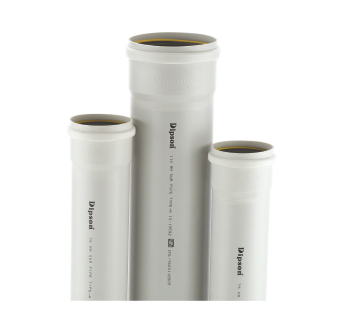

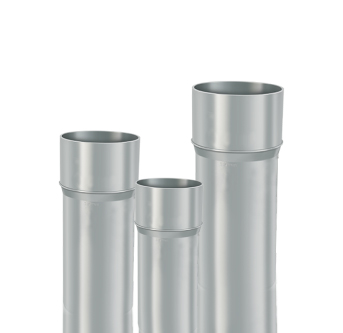

Dimension and Technical Details of SWR Pipes IS : 13592

Size Nominal Bore Nominal Outerside Diameter Type-A Wall Thickness Type-B Wall Thickness
(Inch) (mm) (mm) (min) (max) (min) (max)
2-1/2 75 75 to 75.3 1.8 2.2 3.2 3.8
3 90 90 to 90.3 1.9 2.3 3.2 3.8
4 110 110 to 110.4 2.2 2.7 3.2 3.8
6 160 160 to 160.5 3.2 3.8 4.0 4.6

SALIENT FEATURE

Tensile Strength

Better Tensile Strength

Flexural Strength

Better Flexural Strength

Chemical Resistance

Chemical Resistance

Thermal Resistance

Thermal Resistance

Durable Strong

Durable & Strong

Recyclable

Recyclable

Weather Resistance

Weather Resistance

Lead Free

Lead Free

Resisted Pipe

100% Chlorine Resisted Pipe

Profitable

Profitable

No Maintancence

No maintancence

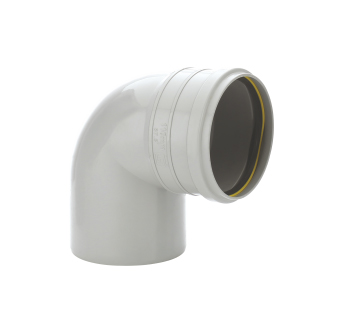

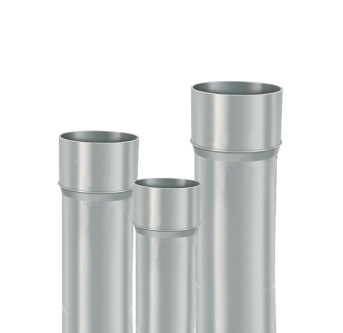

SWR RING FIT pipe and FITTINGS

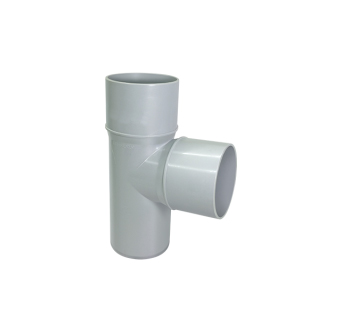

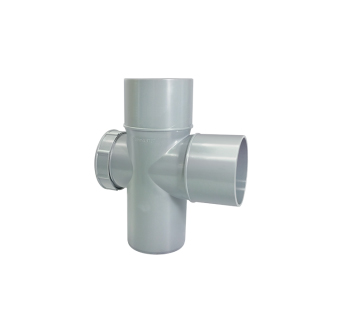

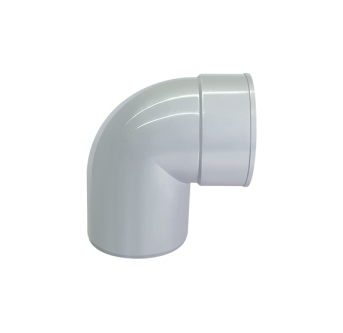

SWR SOLVENT FIT pipe and FITTINGS







Jointing Methods

1. Cutting

2. Chamfering

3. Deburring and Ridge Removal

4. Cleaning

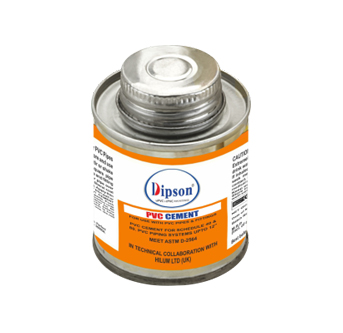

5. Application Of Solvent Cement

6. Application Of Solvent Cement

7. Do Not Hammer

uPVC, cPVC & PVC Joint Method Step

  • Square pipe ends and remove all burrs and dirt.
  • Check dry fit of pipe and fitting. Pipe should easily go 1/3 of the way into the fitting.
  • Clean pipe fitting with listed Primer.
  • Apply liberal coat of solvent cement to pipe to the depth of the socket.
  • Application of Solvent Cement Pipes and Fittings.
  • Push pipe fully into fitting using a 1/4 turning motion until pipe bottom
  • Hold pipe and fitting together for 30 seconds to prevent pipe push-out-longer at cold temperatures.
  • Allow 15 minutes for good handling strength and 2 hours cure time and temperatures above 60* F before hydro static pressure testing up to 180 psi longer cure times may be required at temperatures below 60* F or with pipe diameters over 1".

SWR Joint Method Step

  • Clean The Both Inside Of The Bell And The Outside Of the Spigot
  • Completely Lubricant the Inside Surface of the Bell and the Gasket.
  • Do Not Apply Lubricant Into The Ring Groove.
  • Pipe Lubricant Can Be Applied From 10:F to 150: F.
